605. networking

Networking

At its core, networking is just tagging data with the right addresses and letting the network deliver it. The concept is one sentence, but the failure modes fill textbooks: packets arrive out of order, links congest, addresses exhaust, adversaries forge labels. The layered protocol stack and the protocols within each layer exist to solve these problems reliably at scale.

I

1.1. Switching & Multiplexing

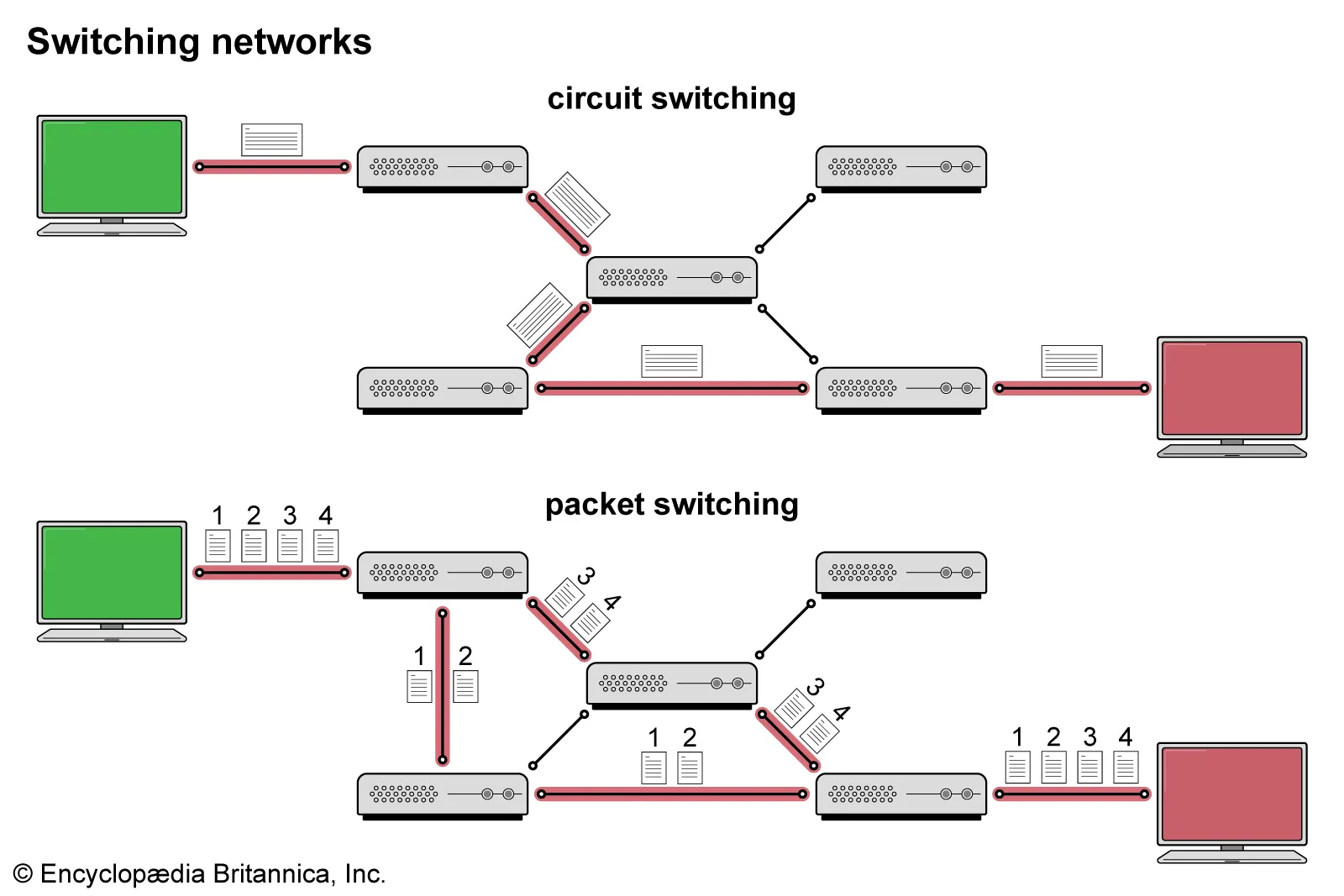

Given a network is a graph of nodes joined by links (e.g. the copper pair, the fibre strand) that exchange data under shared protocols, many sources contending for finite link capacity poses two problems, i) path selection: the route by which data traverses intermediate nodes from source (src.) to destination (dst.); and ii) link sharing: how multiple transmissions divide a single physical link. Switching answers the first and multiplexing the second. How a link of capacity $C$ is partitioned among competing flows is what distinguishes the switching methods and governs the resulting throughput, latency, and loss.

Specifically, given that multiplexing admits i) time-division multiplexing (TDM): each flow transmits in a fixed time slice; ii) frequency-division multiplexing (FDM): each flow occupies a separate frequency band; and iii) statistical multiplexing: flows share capacity on-demand without pre-allocation; circuit switching leverages TDM/FDM and reserves resources (e.g. bandwidth) for the connection’s lifetime irrespective of utilisations. For example, the public switched telephone network (PSTN), where each call reserves a dedicated circuit, suits steady voice calls though it reveals the approach’s fundamental inefficiency for bursty, short-lived computer traffic.

Packet switching instead adopts statistical multiplexing, partitioning data into packets that share the link on-demand for near-maximum utilisation. Each packet carries its own destination address, and a store-and-forward packet switch forwards it hop-by-hop by matching that address against a lookup table to select the next hop, a role realised at multiple layers. The per-packet latency can be decomposed as $d_{\text{total}} = \sum_{i=1}^{N}(d_{\text{proc}} + d_{\text{queue}} + d_{\text{trans}} + d_{\text{prop}})_i$, where $N$ is the number of hops, $d_{\text{trans}} = L/R$ (i.e. push $L$ bits onto the link at rate $R$), and $d_{\text{prop}} = d/s$ (i.e. signal traverses link of length $d$ at speed $s$), whilst $d_{\text{proc}}$ (e.g. header lookup, checksum) and $d_{\text{queue}}$ (e.g waiting behind other packets) are non-deterministic.

1.2. Network Models

Networks are also classified by geographic scope, in increasing span local area network (LAN), metropolitan area network (MAN), and wide area network (WAN). A LAN spans a building/campus at high bandwidth and sub-millisecond latency, predominantly over Ethernet (1973, standardised as IEEE 802.3). A MAN spans a city, a WAN spans countries or continents, interconnecting many LANs. Over WAN distances, $d_{\text{prop}} = d/s$ dominates, fixed by distance and signal speed, hence irreducible by bandwidth (a transatlantic round trip costs tens of ms), whereas LAN latency is transmission-bound. ARPANET (1969), the first packet-switched WAN, grew into the foundation of the modern internet.

The open systems interconnection (OSI) model, set by international organisation for standardisation (ISO, 1977-84), has seven layers with strict separation of concerns. Designed by committee ahead of implementation, its protocol suites (e.g. X.25 for packet switching, X.400 for email, X.500 for directory services) proved over-specified and costly to implement. TCP/IP however took the opposite approach: implement and standardise what works. As a consequence, the US government also abandoned its OSI mandate (GOSIP, 1990) by 1995. Though OSI lost as a protocol suite, its layer numbering persists as standard vocabulary.

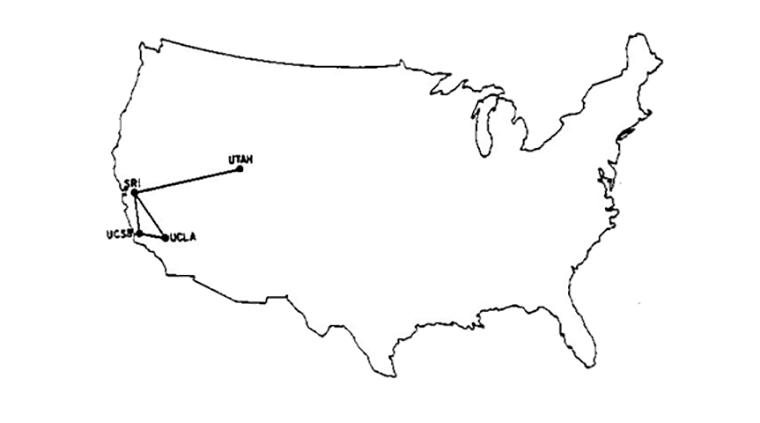

The transmission control protocol / internet protocol (TCP/IP) model was developed through running implementations on ARPANET (NCP → TCP/IP on 1 January 1983, Flag Day), prevailing by shipping working code before any complete specification. It stacks four layers: i) link: frame transmission over a physical medium; ii) internet: logical addressing and best-effort routing; iii) transport: end-to-end process-to-process communication; and iv) application: user-space service semantics. This embodies the end-to-end principle (1984), which holds that application-specific functions should reside at the endpoints rather than in the network, with the two middle layers implemented in kernel space.

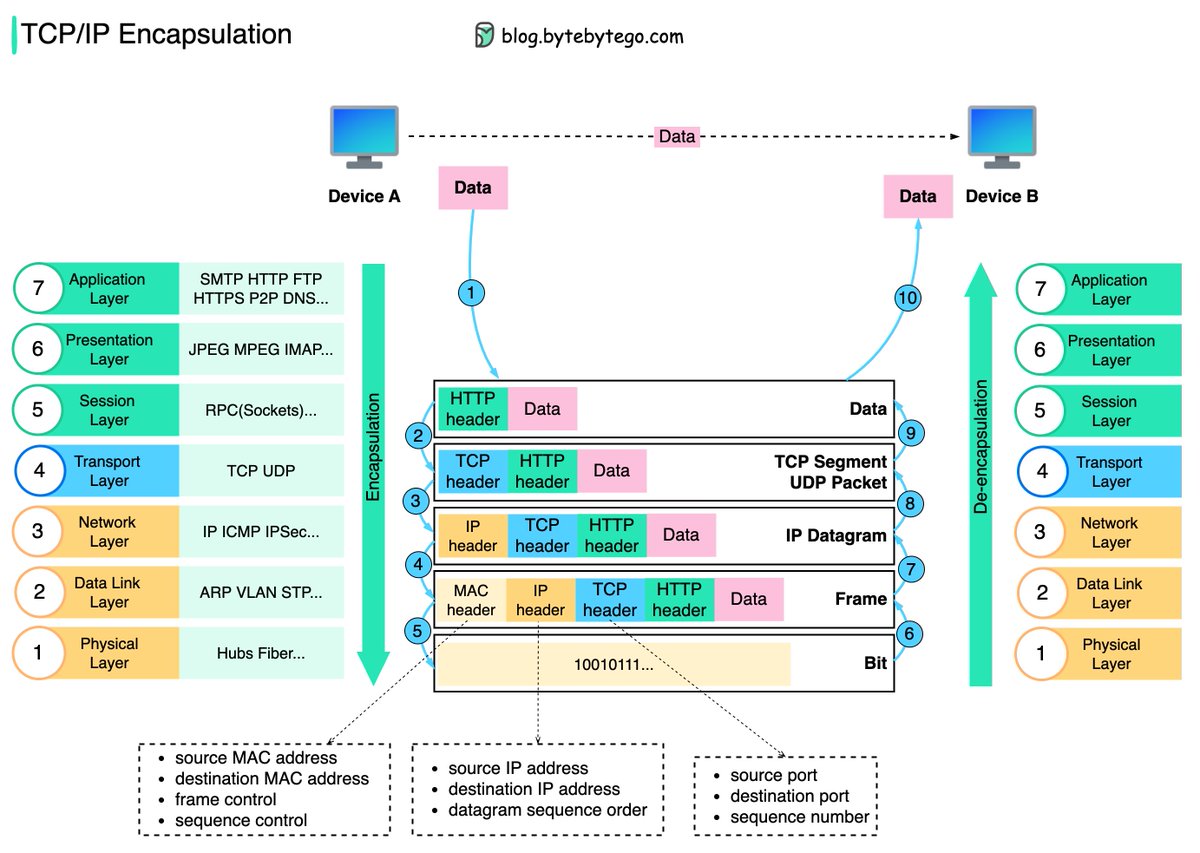

Each layer encapsulates the unit above as opaque payload and prepends only its own header, producing its protocol data unit (PDU), e.g. { $\text{L}1$: bits on the wire, $\text{L}2$: a frame, $\text{L}3$: a packet, $\text{L}4$: a segment (TCP) or datagram (UDP), $\text{L}7$: a message or data}. The receiver decapsulates this in reverse by stripping headers layer-by-layer. The isolation lets each layer evolve independently, so Wi-Fi replaces Ethernet at $\text{L}2$, or IPv6 replaces IPv4 at $\text{L}3$ without disturbing the others.

Encapsulation also fixes which addresses survive the journey. Delivery is addressed per link at $\text{L}2$ but end-to-end at $\text{L}3$, so a frame’s MAC addresses are rewritten at every hop while the packet’s IP addresses hold from source to destination, and the $\text{L}4$ port names the process the bytes are finally handed to.

1.3. Ethernet [L1/L2]

Ethernet spans the physical and link layers, partitioning the work between them. At $\text{L}2$, the media access control (MAC) sublayer frames the payload by prepending src. and dst. MAC addresses and also appending a CRC-32 checksum for error detection, where each MAC is a 48-bit identifier assigned to a network interface card (NIC) on a host device. At $\text{L}1$, the physical sublayer (PHY) serialises this frame onto the medium (i.e. cable) through a line code that fixes voltage, clocking, and modulation (e.g. 100BASE-TX: 4B/5B, 1000BASE-X: 8b/10b). The frame is thus the $\text{L}2$ unit and the encoded bitstream the $\text{L}1$ unit, both governed by one standard.

A MAC serves as a delivery address only within a single broadcast domain (i.e. the nodes reachable by one $\text{L}2$ broadcast), so link-layer switches forward frames within that domain by MAC (from a forwarding table built by self-learning, IEEE 802.1D). The sender must frame to the next hop yet knows only its IP, a gap the address resolution protocol (ARP) bridges by broadcasting a request to ff:ff:ff:ff:ff:ff that the owner answers and the sender caches. When the dst. IP falls outside the local subnet (determined by the subnet mask), the sender resolves the router’s MAC instead and frames the packet to that gateway, which forwards it onward at $\text{L}3$.

A frame’s payload is bounded by the maximum transmission unit (MTU), the largest L3 packet a link carries (1500 bytes on Ethernet), exclusive of the L2 header and CRC, so the on-wire frame is larger still. Headers eat into this budget, leaving $\text{IP packet} \leq \text{MTU}$ and $\text{payload}_{\text{L4}} \leq \text{MTU} - H_{\text{IP}} - H_{\text{L4}}$ (1460 bytes for TCP over IPv4). Across mixed-MTU links the smallest governs, so an oversized packet is fragmented or dropped unless path MTU discovery probes that minimum (IPv4 DF bit plus an ICMP reply) and the sender pre-sizes to fit. Data-centre and GPU-cluster fabrics (§601#2.4) raise it to jumbo frames (9000 bytes), amortising header overhead across distributed-training transfers.

II

2.1. IP [L3]

While a MAC delivers only within one broadcast domain, internet protocol (IP) provides the $\text{L}3$ abstraction that spans heterogeneous physical networks (e.g. differ in frame format $A \neq B \neq C$ and addressing $A = B \neq C$, where $A$: Ethernet, $B$: Wi-Fi, $C$: cellular), unifying them under a single logical address space with best-effort delivery. An IP address is a fixed-length identifier, either 32-bit IPv4 (RFC 791, 1981) or 128-bit IPv6 (RFC 2460, 1998), standardised by the IETF in requests for comments (RFCs). Such networks joined by routers form an internet (inter-network), and the Internet denotes the global instance, grown from ARPANET, reaching 6 billion users (74%, ITU 2025).

Every packet leaving its subnet passes through a router, the $\text{L}3$ realisation of the packet switch, stitching heterogeneous $\text{L}2$ networks into one internet. A link-layer switch stays within one broadcast domain, whereas a router forwards between domains, so a host reaches anything off-subnet only through its default gateway. The router strips the incoming $\text{L}2$ frame, reads the destination IP, looks up the next hop, decrements the time-to-live (TTL, whose expiry elicits the ICMP replies that traceroute exploits), and re-frames to that hop’s MAC, the per-packet data plane distinct from the control plane that builds the table. A router thus forwards toward a destination network, not an individual host.

Routing cannot scale to $2^{32}$ individual hosts, so IP splits each address into a network prefix and a host part, collapsing many hosts into one routable network, and only the destination network resolves the individual host. Classful addressing (RFC 791, 1981) gave this split its first form, fixing the prefix length $n$ at 8, 16, or 24 by an address’s leading bits, so Class A, B, and C networks held about 16M, 65k, and 254 hosts. The gaps were coarse, so an organisation needing 500 hosts overflowed a Class C and took a whole Class B (/16), stranding 65,000 addresses on one flat broadcast domain.

Subnetting (RFC 950, 1985) freed the boundary to any bit through the subnet mask, $n$ leading ones a host ANDs with an address to recover its prefix, each added bit doubling the subnets and halving the hosts. The mask thus induces an equivalence relation, $x \sim y$ iff $x$ AND mask $=$ $y$ AND mask, and a subnet is one of its classes, one broadcast domain of $2^{32-n} - 2$ usable addresses, where two hosts reach each other directly at $\text{L}2$ if and only if they fall in the same class, else via an $\text{L}3$ router. Classless inter-domain routing (CIDR, RFC 1519, 1993) then abolished classes internet-wide, so $n$ can take any length and adjacent prefixes aggregate into one route (i.e. two sibling /$n{+}1$ classes merging into their parent /$n$, coarsening the partition), curbing forwarding-table growth. The assignment itself is automated by dynamic host configuration protocol (DHCP, RFC 2131), a UDP exchange in which a joining host broadcasts a request and a server leases it an address, subnet mask, default gateway, and DNS resolver for a renewable term.

IPv4’s $2^{32}$ addresses exhausted even under CIDR. Address allocation for private internets (RFC 1918) reserves three non-routable ranges {10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16}, which network address translation (NAT), specifically port address translation (PAT), multiplexes behind one public IP by rewriting source ports, making them reusable across millions of networks but breaking end-to-end addressability. An address thus sits at one of three scopes, loopback (127.0.0.0/8) $\to$ private (a LAN) $\xrightarrow{\text{NAT}}$ public, and IPv6’s $2^{128}$ space restores end-to-end reachability, largely retiring NAT as the dual-stack transition proceeds.

The same prefix that decides locality also drives delivery. Since a /$n$ prefix is an aligned block of $2^{32-n}$ addresses, any two prefixes are either disjoint or nested, so the routing table entries containing a destination always form a chain and the longest-prefix match, the chain’s most specific element, is well defined, with a default route (0.0.0.0/0) as the coarsest fallback. Routing protocols build that table. Within an autonomous system (AS), one operator’s network, intradomain routing seeks shortest paths, open shortest path first (OSPF) running Dijkstra on a link-state map and routing information protocol (RIP) exchanging distance vectors by Bellman-Ford. Between ASes, interdomain routing by border gateway protocol (BGP) advertises prefix reachability and picks paths by operator policy and AS-path length rather than distance, knitting the autonomous systems into one Internet.

2.2. TCP [L4]

Given that IP is not responsible for reliability, transmission control protocol (TCP, RFC 675 1974; RFC 793 1981, now RFC 9293 2022) provides reliable, ordered, byte-stream delivery over an unreliable packet-switched network. A TCP connection is identified by a 4-tuple (src IP, src port, dst IP, dst port), denoted IP:port (e.g. 127.0.0.1:8080), where ports are 16-bit integers (0-1023 reserved) that multiplex a single IP to distinct processes.

Before any byte can be numbered both ends must agree where numbering starts, over a network that delays and duplicates, which is why connection establishment takes three messages and not two. In the three-way handshake (3WHS) the client sends SYN with initial sequence number (ISN) $x$, the server replies SYN-ACK with ISN $y$ and ACK $x+1$, and the client completes with ACK $y+1$, each side’s ISN thus explicitly acknowledged, costing one RTT before data transfer. Teardown uses a four-way FIN exchange. The same delayed-duplicate hazard outlives the connection, since a straggler segment from a closed connection could be taken for one from its successor on the same 4-tuple, so the closing side holds TIME_WAIT for $2 \times$ MSL (maximum segment lifetime), 240s under RFC 793’s 120s MSL though Linux caps it at 60s. Each incarnation also begins from a distinct ISN, originally a 32-bit counter ticking every ~4µs (RFC 793), now a cryptographic hash (RFC 6528) that also resists off-path sequence prediction.

A connection is not yet reliable delivery, as IP beneath it may drop or reorder packets, and TCP reconstructs the ordered stream from sequence numbers and acknowledgements, numbering each byte in the stream so the receiver can return cumulative ACKs naming the next byte it expects. The sender holds a sliding window of unacknowledged data and retransmits segments not acknowledged within the retransmission timeout (RTO), but the right timeout cannot be fixed in advance when RTT varies by path and by congestion, so Jacobson’s algorithm estimates it from smoothed RTT and its variance. Waiting out even a well-estimated timer is slow, and duplicate ACKs signal a loss earlier, so fast retransmit resends on three duplicates for the same sequence number, cutting recovery from hundreds of milliseconds to roughly one RTT. A cumulative ACK still cannot say which later blocks arrived, forcing retransmission of data the receiver may already hold, and selective acknowledgements (SACK, RFC 2018) close that last gap by reporting the received ranges so the sender resends only what is missing.

Reliable delivery can still overwhelm its receiver or the network, two distinct problems with two distinct mechanisms. Flow control protects the receiver through a receiver-advertised window (rwnd), whereas congestion control protects the network through a congestion window (cwnd), and the sender transmits at $\min(\text{rwnd}, \text{cwnd})$, so the tighter constraint always governs throughput. The receiver can state its window outright, but the network cannot, so cwnd must be probed, a lesson learned from the 1986 internet congestion collapse and formalised by Van Jacobson in 1988. Slow start initialises cwnd $= 1$ maximum segment size (MSS, though modern stacks start at 10 per RFC 6928) and doubles it each RTT until threshold ssthresh, beyond which congestion avoidance applies additive increase/multiplicative decrease (AIMD), one MSS per RTT up and halving on loss. CUBIC (Linux default since 2006) replaces the linear increase with a cubic function $W(t) = C(t - K)^3 + W_{\max}$, recovering faster on high-bandwidth links, while BBR (Google, 2016) drops loss as the congestion signal altogether, since loss appears only after the bottleneck buffer has already filled and delay has already risen, instead estimating bottleneck bandwidth and minimum RTT and pacing packets to match capacity.

A socket (BSD 4.2, 1983) is a communication endpoint exposed as a file descriptor, created by specifying an address family and a socket type. The address family determines what the socket is bound to: AF_UNIX for a local filesystem path (§603#3.1, UDS), AF_INET for an (IP, port) pair. The socket type determines the delivery semantics: SOCK_STREAM for reliable byte streams (TCP), SOCK_DGRAM for best-effort datagrams (UDP). BSD 4.2 unified local and network IPC under this single API, extending the fd interface (§603#3.3) from pipes and files to network endpoints, so the socket became the common gateway for both local IPC and network communication. Sockets are a message-passing mechanism (§603#3.1) regardless of address family, as data is always copied through the kernel rather than shared directly. The application code is nearly identical in both cases; only the address struct differs, and the network stack transparently handles routing and reliability when the two processes happen to be on different machines.

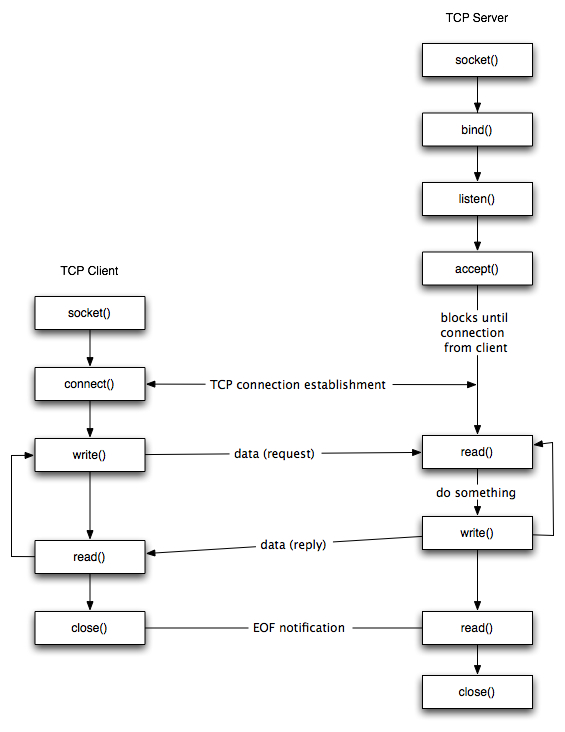

A TCP server creates a socket, calls bind() to attach it to a local (IP, port), then listen() to mark it as a passive socket that accepts incoming connections. Each accept() call blocks until a client connects via the three-way handshake, then returns a new connected fd for that client’s 4-tuple, which is why §604#1.1’s thread-per-connection model spawns one thread per accept(). Higher-level libraries (e.g. Python’s requests) abstract this entirely, calling down through urllib3 → socket module → POSIX socket API → kernel TCP/IP stack.

2.3. UDP [L4]

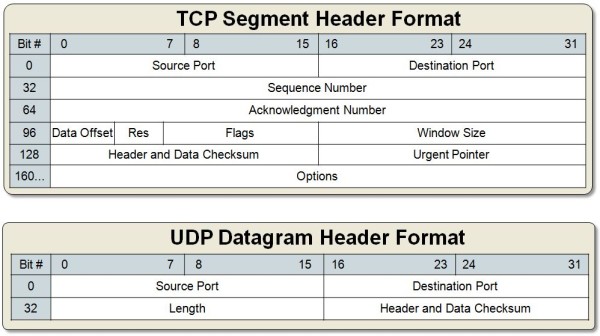

Where TCP layers reliability, ordering, and flow control over IP, user datagram protocol (RFC 768, 1980) keeps IP’s best-effort, connectionless delivery and adds almost nothing but ports and a checksum. Its header is only 8 bytes (source port, destination port, length, checksum), compared to TCP’s minimum 20-byte header, and there is no handshake, no acknowledgement, no retransmission, no ordering guarantee, and no flow or congestion control. This simplicity is a deliberate design choice for applications where the overhead of reliability exceeds the cost of occasional data loss. Like TCP, UDP is accessed through the socket API, using SOCK_DGRAM instead of SOCK_STREAM.

Each canonical UDP application declines reliability for a different reason. DNS fits the typical request-response exchange in a single datagram, and the one RTT saved by skipping the three-way handshake matters for a service invoked before every HTTP connection. Real-time voice and video (VoIP, video conferencing) drop rather than retransmit, since an audio frame arriving 200 ms late is worse than a gap. Online games send state updates (player positions, actions) at 20-60 Hz where each supersedes the last, so a lost packet is repaired by the next one rather than by a retransmission. The application either tolerates loss, implements its own selective reliability on top of UDP, or treats the latest packet as the only one that matters.

Without built-in congestion control, a UDP application that sends at full rate regardless of network conditions risks contributing to congestion collapse, where the network is saturated with retransmissions and useful throughput approaches zero. Well-behaved UDP applications implement their own rate limiting or congestion-aware pacing. Packets exceeding the path MTU are fragmented at the IP layer in IPv4, and since losing any one fragment forces retransmitting the whole datagram, a UDP app keeps each message within the MTU, which is why DNS falls back to TCP when a UDP response is truncated, historically above 512 bytes though EDNS(0) permits up to 4096, with ~1232 the fragmentation-safe default since DNS Flag Day 2020.

III

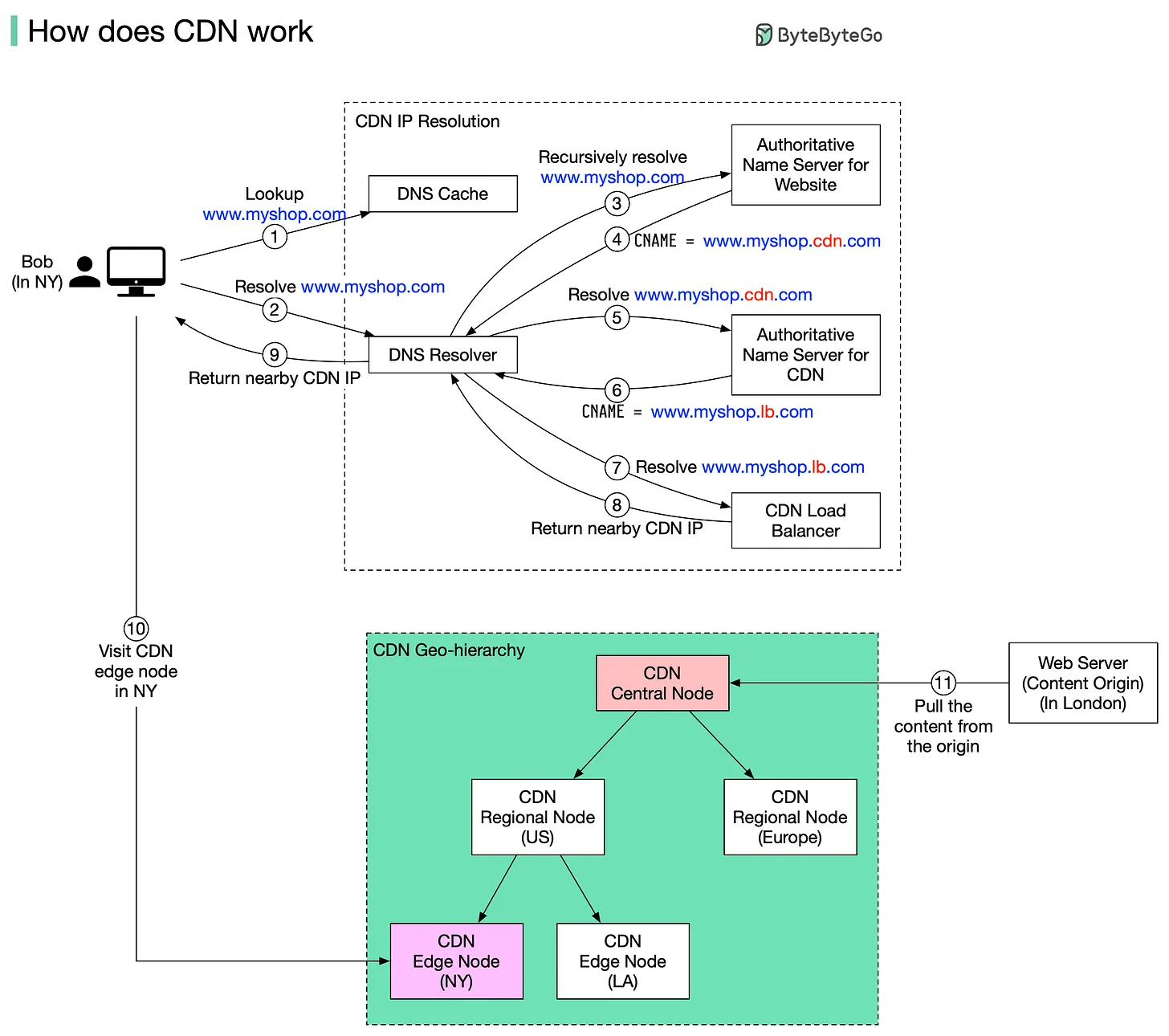

3.1. DNS (+ CDN) [L7]

Transport carries bytes between numeric addresses, leaving the application layer to define what they mean, beginning with the service that turns a name into an address. Domain name system (RFC 1035) (DNS, 1987) is a hierarchical, distributed system that resolves domain names to typed records, served conventionally over port 53. A query such as dig google.com A (or nslookup) triggers a recursive resolver (e.g. ISP-provided) to resolve the domain proceeding through: i) 13 root server clusters identify the top-level domain (TLD) where anycast routes a query to the nearest physical instance sharing the same IP; ii) the TLD server delegates to the domain’s nameserver; and iii) the authoritative nameserver provides an A record (IPv4). Each response carries a TTL governing how long resolvers may cache this.

DNS record types extend beyond A records, including AAAA (IPv6), CNAME (alias), MX (email routing), TXT (domain verification), and SRV (service host, port, priority). In particular, CNAME records enable content delivery networks (CDNs), where a domain’s CNAME redirects resolution to the CDN’s namespace and anycast returns the nearest point of presence (PoP). Providers such as Cloudflare (~330 cities), Akamai (~4,100 PoPs), and CloudFront (~750 PoPs) operate using HTTP caching headers (Cache-Control, ETag) to govern freshness across them, while the PoP serves cached content directly and falls back to the origin on a cache miss.

Without encryption or signing, DNS is vulnerable to cache poisoning, in which an off-path attacker races the legitimate reply with a forged one and a resolver that accepts it serves the attacker’s record for the TTL’s duration. The 2008 Kaminsky attack showed that the 16-bit query ID alone makes this race winnable within seconds, forcing resolvers to randomise source ports as a stopgap. DNS security extensions (DNSSEC) address integrity, as each zone signs its records and the parent zone signs the child’s key, forming a chain of signatures from the root that a resolver verifies before caching. DoH (DNS over HTTPS) and DoT (DNS over TLS) instead address confidentiality, encrypting the stub-to-resolver hop so an on-path observer cannot read or tamper with queries, though the resolver itself still sees every lookup.

3.2. The Web [L7]

By 1989 the internet was two decades old, yet the two capabilities a web of documents would need still sat in separate systems, i) reach: crossing to a document on another machine; and ii) linking: an inline jump to another document. Reach existed without linking. FTP (1971) and email over SMTP (1982) moved documents across machines as flat files, no links. Linking existed without reach. It began with the Memex (1945) in As We May Think , a microfilm desk whose associative trails linked documents. Apple’s HyperCard (1987) made hypertext mainstream, but its links never left one machine, unable to name documents elsewhere. No system held both.

At CERN, physicists on incompatible machines lost documents across unlinked systems. Tim Berners-Lee’s 1989 memo Information Management: A Proposal joined the two halves with three pieces, i) hypertext markup language (HTML): a document format carrying inline links; ii) uniform resource locators (URLs): one scheme naming any document on any host; and iii) hypertext transfer protocol (HTTP): the protocol transferring it; The result, the world wide web (WWW, W3), is an $\text{L}7$ space of linked documents addressed by URL, one application over the internet, not the internet itself. So both are webs, the internet of networks and the web of documents.

While HTML structures a document into headings, paragraphs, and lists, its anchor element places a link anywhere in the running text. Any page can then reference any other on any host, forming a graph rather than a tree. The first browser to render it, WorldWideWeb editor (later renamed as Nexus) on a NeXT machine (1990), even displayed images inline, but only through the NeXT’s own text system, so that ability stayed bound to the platform and was lost once the browser was ported to others. Markdown (2004), a lighter markup language John Gruber designed, compiles to this same HTML while remaining readable as unrendered plain text.

A rival briefly looked likelier to win. Gopher (1991, University of Minnesota) appeared just after the web, was likewise networked, and presented documents through nested menus, spreading faster for a year or two. The two differed not in protocol, since gopher and HTTP are near-twin request-response protocols, but in document model. Gopher stored documents as plain text and confined links to the menus, giving it the tree structure of a filesystem (§603#3.3) or code repository, navigated by drilling down and back up. Its native clients spoke only gopher://, never the web’s http://.

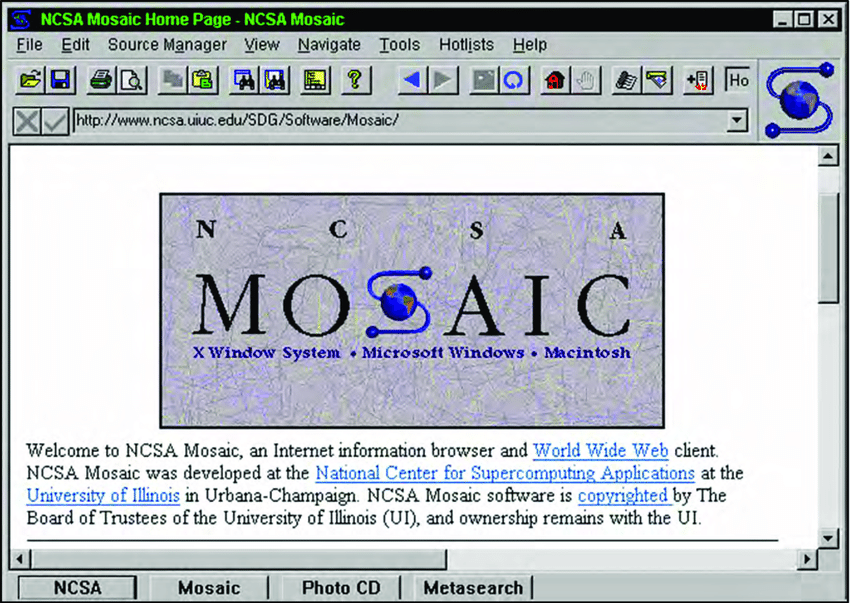

The web soon overtook its rival on two fronts. In 1993 Minnesota’s licensing fees drove adoption off Gopher while CERN placed the web in the public domain, and Mosaic rendered inline images on commodity hardware, a medium richer than text-only Gopher that Netscape (1994) carried to the mass market. Because a URL’s scheme names the protocol, these browsers dispatched ftp://, mailto:, and gopher:// from one address bar, subsuming the rival rather than merely beating it. A fragment of Gopher endures there nonetheless, as Mark McCahill, one of its Minnesota creators, co-authored the URL specification (RFC 1738, 1994) and is credited with coining the term.

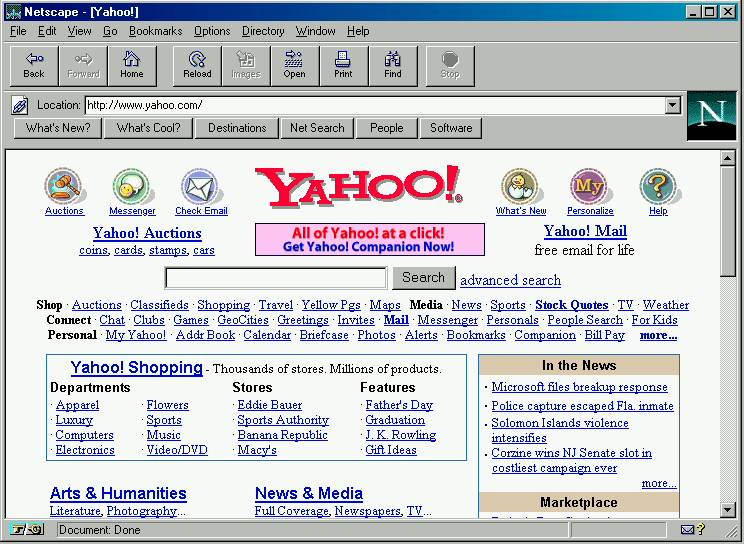

The same inline links soon became the web’s retrieval problem. As the corpus grew to millions of documents, the constraint shifted from reaching a page to identifying the relevant one. Curated directories like Yahoo and keyword engines like AltaVista addressed this poorly, the former bounded by human editors, the latter gamed by repeating terms on a page. Google’s PageRank (1998) instead exploited the hyperlink graph, weighting each inbound link by the rank of its source, equivalently the stationary distribution of a random walk over it, made irreducible and aperiodic (hence ergodic with a unique stationary distribution, §212) by a damping term that teleports to a uniformly random page. The link an author placed for a reader thus doubled as the signal a machine ranked by, so one structure served both navigation and retrieval.

3.3. HTTP [L7]

An HTTP request opens in plain text with a start line naming the method, target URL, and protocol version, then header lines of key-value metadata and an optional body, and the response mirrors it with a status line, headers, and body. The target decomposes as scheme://host:port/path?query, its host resolved through DNS, a framing readable enough to inspect directly with curl or telnet. Headers form the protocol’s extensibility surface, the mandatory Host letting one IP serve many domains through virtual hosting, Accept and Content-Type driving content negotiation over the representation and its media type (MIME, RFC 6838), and Accept-Encoding selecting compression (gzip, brotli).

HTTP is stateless by design, the server retaining no memory between requests, so applications must carry state explicitly. Cookies carry a session ID, while bearer tokens like a JSON web token (JWT) ride the Authorization header, both threading client state. The session ID indexes server-side state, whereas a JWT carries signed claims inline, sparing the lookup but resisting revocation. Status codes partition responses into five classes by the leading digit (1xx informational, 2xx success, 3xx redirection, 4xx client error, 5xx server error), of which 200, 301, 404, and 503 dominate debugging.

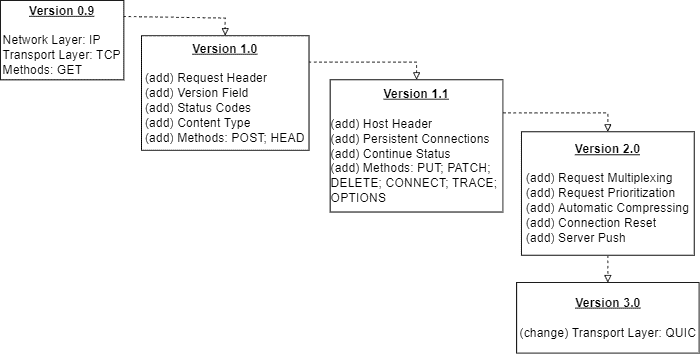

HTTP/1.0 (RFC 1945, 1996) opened a new TCP connection per request, wasting a round-trip. HTTP/1.1 (RFC 2068, 1997) added persistent connections and pipelining, but pipelined responses suffered head-of-line blocking, one slow response stalling those behind it, so browsers disabled pipelining and opened ~6 parallel connections per origin instead. HTTP/2 (RFC 7540, 2015) multiplexed streams over one TCP connection, yet a lone lost segment stalled every stream at once (transport-layer head-of-line blocking). HTTP/3 (RFC 9114, 2022) dissolved this with QUIC (Google, 2012, standardised 2021 as RFC 9000), reimplementing TCP’s reliability and TLS 1.3 encryption over UDP for 1-RTT establishment (0-RTT on resumption). The progression tracks protocol ossification, TCP so embedded in middleboxes that it proved immutable, forcing innovation onto UDP.

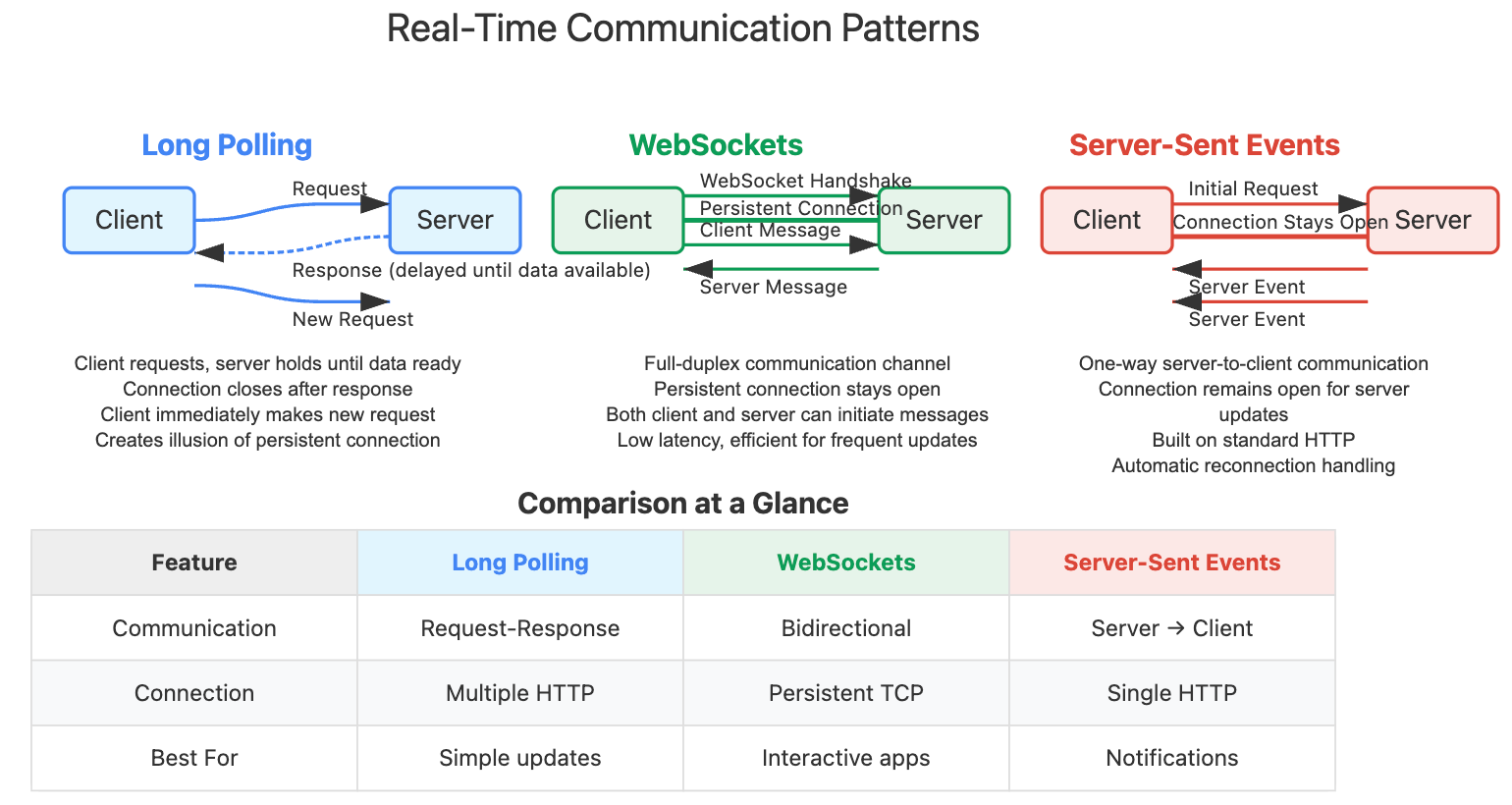

Applications sometimes require server-initiated data, but HTTP/1.x is strictly request-response, with the client initiating every exchange and only one in flight at a time per connection. Long polling (~2006, Comet) simulated server push by holding requests open, wasting one TCP connection per pending event. Server-sent events (SSE, W3C 2015) solved it with persistent unidirectional streaming over a single HTTP connection (e.g. LLM token streaming, where tokens are generated sequentially but delivered in chunks due to I/O buffering). WebSocket (RFC 6455) (2011), by contrast, uses an HTTP Upgrade handshake to switch to a full-duplex protocol over TCP, which supports bidirectional use cases (e.g. Slack, Figma).

3.4. HTTPS [L7]

HTTP transmits plaintext, exposing traffic to any observer on the path. Transport layer security (TLS), evolved from Netscape’s Secure Sockets Layer (SSL, 1995, now obsolete), provides confidentiality, authentication, and integrity over TCP, and HTTPS is simply HTTP spoken inside a TLS tunnel (i.e. port 443), though TLS also secures other protocols such as SMTP, database connections, and gRPC. In TLS 1.3 (RFC 8446, 2018), the client and server exchange cipher suite preferences and ECDHE key shares in a single round-trip, deriving a shared secret and verifying the server’s identity via its X.509 certificate. Resumed connections support 0-RTT by reusing a cached pre-shared key, trading replay vulnerability for zero-latency establishment.

Encryption alone would still leave an impostor holding the other end, so the server’s identity rests on a certificate chain of trust, where the server presents a certificate signed by an intermediate CA (Certificate Authority), itself signed by a root CA pre-installed in the client’s trust store. The client validates each signature and checks the hostname against the certificate’s names. Trust so anchored is only as durable as the key it names, which is why TLS further achieves forward secrecy through ephemeral key exchange, each session generating a unique Diffie-Hellman key pair discarded after the handshake, so a compromised long-term key cannot decrypt past traffic, and why TLS 1.3 mandates ephemeral exchange and removes static RSA.

What binds the certificate to the live session is the handshake itself, as the server signs a transcript of the handshake messages with the certificate’s private key (i.e. CertificateVerify), so a stolen certificate without its key cannot impersonate the server, and the derived secret then authenticates every subsequent record. Validation failures are correspondingly the common operational errors, where SSL: CERTIFICATE_VERIFY_FAILED or ERR_CERT_AUTHORITY_INVALID typically indicates an expired certificate, a hostname mismatch, or a missing intermediate, and curl -v or openssl s_client reveals the full handshake for debugging. Issuance itself is automated by ACME (RFC 8555), the protocol behind Let’s Encrypt, which proves domain control through an HTTP or DNS challenge and issues short-lived 90-day certificates that a daemon renews, making HTTPS the default rather than a purchased add-on.

IV

4.1. Application Programming Interface

The application programming interface (API) is the contract by which one program exposes its operations to another. Within a single process it is no more than a shared function signature. A networked service instead stretches the contract across a process or machine boundary, where the stack delivers the payload intact but never interprets it, leaving what its bytes mean for the two endpoint programs to settle. That agreement runs along two axes. i) format: the data’s encoding, replaceable without redesign, hence interchangeable; and ii) style: the operations and their semantics, pinned in both ends in advance, and so architecturally decisive.

The format axis begins a step below the formats, at serialisation, the flattening of an object into self-contained bytes. It is needed because a heap object (e.g. a C struct, a Python dict) is a web of pointers, each a virtual address only its process’s page tables translate (§603#3.2). No other host holds the mapping, nor does the channel carry a heap but only flat bytes. Therefore, a text format flattens in two steps, ($\Rightarrow$) the sender serialising the object to text $\to$ encoding it as 8-bit unicode transformation format (UTF-8) bytes, ($\Leftarrow$) the receiver decoding $\to$ deserialising, whereas a binary format writes each field to bytes directly. This encoding, not delivery, is OSI’s presentation layer ($\text{L}6$).

The formats atop it trade legibility for density. Text formats such as JavaScript object notation (JSON) and extensible markup language (XML) stay human-readable and self-describing but verbose and slow to parse. YAML, a superset of JSON, earns the config and spec role by comments and indentation, and loses the wire to significant whitespace and unsafe deserialisation. Binary formats such as protobuf are denser and faster yet opaque. A format may further carry a schema, one definition both ends hold and validate against. The trade is flexibility for machine-checked agreement, since a breaking message fails at the boundary, where schemaless ends would misread it.

Note that the format fixes not just how bytes read, but also how they may change - the harder half once clients are live. They must stay backward-compatible (i.e. an old client understood by a new server) and forward-compatible (i.e. a new client tolerated by an old server), both kept by additive schema evolution, where an old field is never removed or repurposed. Only when a change cannot stay compatible is the API versioned, by URL (e.g. /v2/), header, or media type. For instance, Stripe pins a version per account and threads old requests via compatibility shims, thus one code-base serves a decade of clients. Google’s AIP also forbids breaking change within a major version.

Beyond format lies style, the axis to which the remaining sections turn. Styles are graded by coupling, the prior agreement the two ends must share before they interact. Who the ends are decides how much agreement is affordable, since an unknown public client the server cannot redeploy forces the loosest contract while two co-deployed services afford the tightest. The grading does not track the calendar, with the tight procedure contracts of RPC and the simple object access protocol (SOAP) coming first, REST loosening to inherit the web, and GraphQL and gRPC drawing the contract back as relationships narrowed. Each style is the contract its relationship makes possible.

4.2. REST

Roy Fielding, a co-author of HTTP/1.0 alongside Berners-Lee, shaped both HTTP/1.1 and the uniform resource identifier (URI) syntax (e.g. scheme://host/path?query). There he observed that the web, where one HTTP request hands a document to a browser or data to a program, already behaves as an API. His 2000 dissertation distilled the observation into a model named representational state transfer (REST). Machinery built for documents extends unchanged to any resource a program names and serves an order or a user as readily as a page, yet the two ends share nothing bespoke beyond HTTP’s generic contract and couple as loosely as the web itself.

At the outset, a relatively minimal contract seemed an improbable victor over richer rivals, even so it won with the web’s grain where the rivals cut against it. SOAP and XML-RPC (1998) rode HTTP as a pipe and buried each call in an opaque XML POST no intermediary can read. REST instead named the target in the URL and the effect in the verb, hence any cache or proxy could serve a repeat by method and URL alone. The same divide told in the formats. Browser-native JSON proved lighter than XML, whose markup heft descends from the standard generalised markup language (SGML) roots shared with HTML. REST rode the winner while SOAP kept its envelopes.

Practically, the contract reduces to a brief vocabulary. Anything nameable is a resource identified by a URI such that the server returns only a representation of its state. A client acts on the HTTP verbs, {create: POST, read: GET, update: PUT, delete: DELETE}. The verbs differ in guarantee. For instance, one has {GET} ⊂ {GET, PUT, DELETE}, as safety (i.e. state unchanged) implies idempotence (i.e. twice equals once, $f(f(x)) = f(x)$). Unlike a safe verb whose repeat changes nothing, POST holds neither and its repeat duplicates unless an idempotency key collapses it onto the first. The wire carries no schema and OpenAPI (i.e. Swagger UI) recovers one out of band for docs.

A resource need not be singular. A collection gathers many under one URI (e.g. GET /orders returns a list), thus it is unbounded, and the server leverages pagination such that each reply carries one page whose edge is fixed by position or value. An offset simply counts rows to skip. The database re-scans the skipped prefix at $O(N)$ for every page. An offset also names no row, so concurrent writes shift every later row and records repeat or vanish. A cursor instead fixes the edge by the last-seen value of the sort key and resumes past it through an index at $O(\log N)$, immune to that drift at the cost of forbidding jumps to an arbitrary page and demanding a unique ordering.

In summary, his dissertation grounds REST in six constraints chosen to induce scalability and generality, i) client-server separation, ii) statelessness, iii) cacheability, iv) a uniform interface, v) layering, and vi) optional code-on-demand. While statelessness contributes the most, letting any server answer any request and capacity scale horizontally, the strictest is the uniform interface whose hardest clause hypermedia as the engine of application state (HATEOAS) drives the client by server-returned links rather than URLs fixed in advance. The open web is therefore the purest REST, while most JSON services hardcode endpoints, a decay Fielding decried in 2008.

4.3. GraphQL

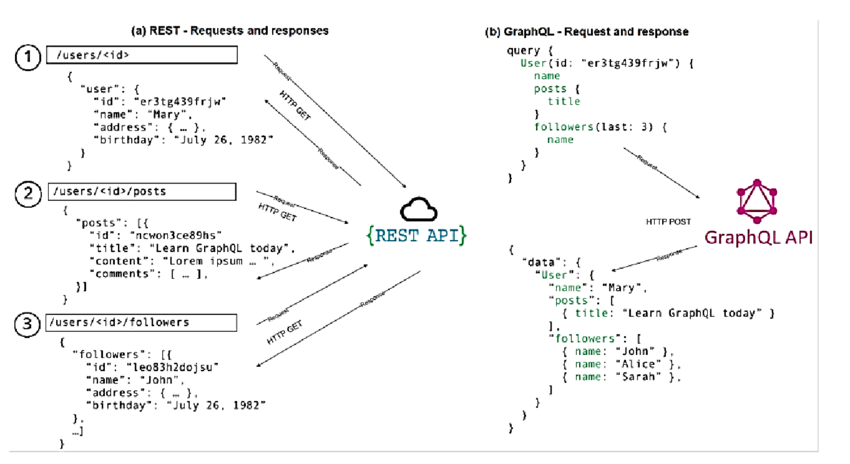

A fixed REST endpoint over-fetches a whole resource for one field, or under-fetches into several round-trips. GraphQL (Facebook 2012, open-sourced 2015) answers both by moving the shape of the response from server to client. A single typed schema, the first agreement REST did without and affordable since the vendor owned both ends, describes the graph of available fields. One endpoint accepts a query naming exactly the fields wanted across related entities, returning them in one round-trip. Each field is answered by its resolver, the server-side function fetching it from its table or service, thus the join runs inside the server rather than across the client’s round-trips.

The gain costs the leverage REST drew from HTTP. A lone POST endpoint defeats per-URL caching, and a query nesting to depth $d$ over branching factor $b$ fans out to $O(b^d)$ resolver calls, the $N+1$ problem its routine instance. Practice pays these down. Dataloader batching collapses the $N+1$ to $1+1$ by coalescing the keys requested within a tick into one query. Persisted queries (a hash standing in for the query text) restore GET caching, while depth and complexity ceilings bound a query’s cost.

GraphQL also rarely fronts one service, its schema an aggregation layer. Federation composes subgraphs, each owned by a separate backend, into one supergraph the gateway resolves, every field dispatched to its owning REST, gRPC, or datastore and reassembled into the requested shape. GitHub’s v4 API and Shopify expose their platforms through a single such graph. GraphQL thus stands as a backend-for-frontend before a microservice fleet rather than between its members, the gap the tightest style fills.

4.4. RPC

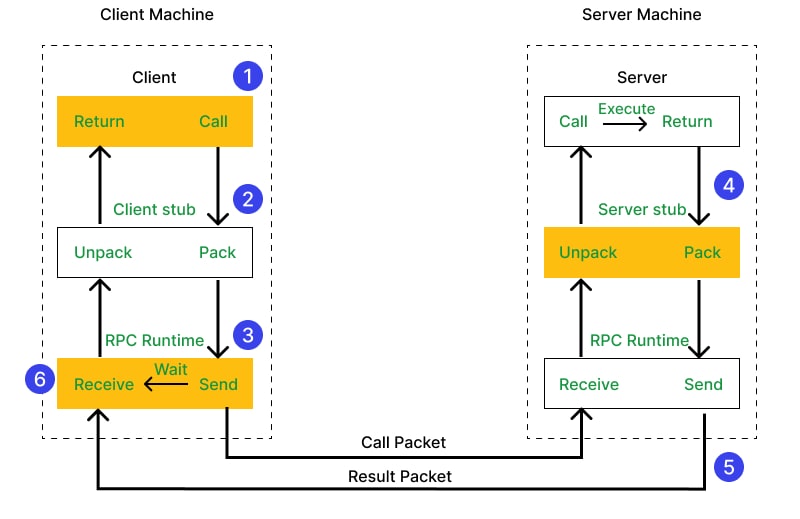

REST addresses a resource and hands back a snapshot of its state, whereas RPC names a procedure for the server to run, a noun answered by state against a verb answered by a computation. Between co-deployed services REST and GraphQL’s public-edge generality is dead weight, text over HTTP paying for reach no internal caller needs. Remote procedure call (RPC, Birrell 1984) tightens here. The client invokes the procedure through a stub, a local proxy generated from an interface definition both ends compile in advance. The stub marshals the arguments and unmarshals the reply, and the call thus reads as local, an abstraction leaking where the network fails or stalls as a local call would not.

Tunnelled through HTTP by SOAP and XML-RPC, RPC lost to REST at the edge but returns on its own protocol, its implementations spread across coupling. JSON-RPC 2.0 (2010) sits at the loose end, a schemaless, transport-agnostic object of method, params, and id. gRPC (Google, 2015), its internal Stubby opened up, holds the tight end, typed protocol buffers (protobuf) over HTTP/2, whose multiplexing carries unary or streaming calls, fast but cache-opaque and unreachable from a browser without a grpc-web proxy, a fit for intra-cluster links and ML serving.

The language server protocol (LSP, Microsoft, 2016) first built on JSON-RPC at scale. $M$ editors wired to $N$ languages by hand form an $M \times N$ tangle of bespoke plugins, which LSP collapses to $M+N$ by the same hub factorisation as LLVM’s IR (§602#2.1), one JSON-RPC contract each language implements once for every editor and each editor once for every language. The insight was that language intelligence is a service, not an editor feature. A language server, a separate process speaking the protocol over stdio or a socket, answers completion, diagnostics, and go-to-definition, while the editor stays ignorant of the language’s toolchain, a template a new $M \times N$ tangle would soon borrow.

Anthropic’s model context protocol (MCP, 2024) applies the same $M+N$ collapse to LLM agents, built on the same JSON-RPC, one open standard a tool implements once for any client. A model’s reach is bounded by what it can call, and a shared protocol for tools and context is what turns a chatbot into an agent, its context window a bus any capability can plug into. A server exposes {resources: data, tools: typed functions, prompts: templates} over stdio or HTTP. Its transport evolved like HTTP’s, per-client HTTP+SSE giving way to a stateless Streamable HTTP (2025) endpoint any node can serve, echoing QUIC displacing TCP under HTTP/3.
